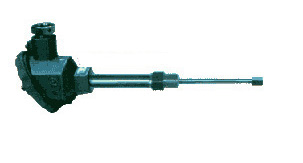

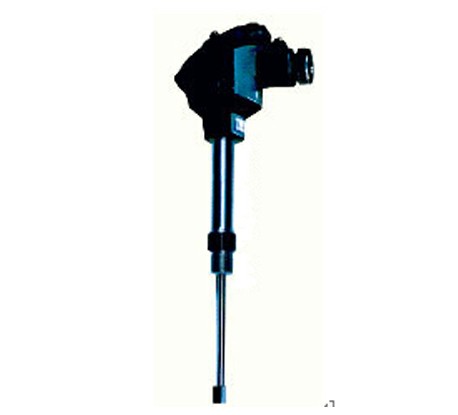

Furnace tube edge thermocouple

Detailed introduction:

Blade-type furnace tube surface mounted thermocouple

It is made up of a waterproof junction box and a knife-edge type temperature-sensing element (the end is a shell type) positioning card, and a movable positioning circle.

It is a temperature measurement for high temperature places on the surface of furnace tubes for refining, electric power, metallurgy, machinery and food heating.

structure:

Measuring range:

Long-term use of 871 degrees (armored sleeve material 1Cr18N i9ti) and 1100 degrees (armored casing material GH3030)

Standard form of armored thermocouple material

sign： A

Outer diameter of casing（mm ）	Outer diameter of casing
		sign： B
Single-branch type	í 12.7	1Cr18Ni9ti	GH3030
Double-support type	í 12.7	1Cr18Ni9ti	GH3030

NOTHING
