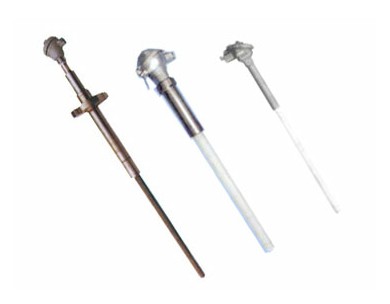

High temperature anticorrosive thermocouple

Detailed introduction

1、application

It is suitable for high temperature and corrosive occasions in various production processes. It is widely used in oil industry, smelting glass and ceramic industry for temperature measurement.

2、the main technical parameters

Electrical outlet: M20x1.5, NPT1/2

Accuracy level: I, II

Protection level: IP65

3、model and specifications

Model	Graduation	Measuring range℃	Protective tube material	Thermal response time	Specifications
					d	L x 1 mm
WRPF-130G WRP 2 F-130G	S	0-1300	3YC52	∠ 80S	Φ16	300x150 350x200 400x250 450x300 500x350 550x400 600x450 650x500 750x600 1000x850
WRHF-130G WRH 2 F-130G	R	0-1300
WRRF-130G WRR 2 F-130G	B	0-1600	MoSi2
WRPF-430G WRP 2 F-430G	S	0-1300	3YC52
WRHF-430G WRH 2 F-430G	R	0-1300
WRRF-430G WRR 2 F-430G	B	0-1600	MoSi2

NOTHING
