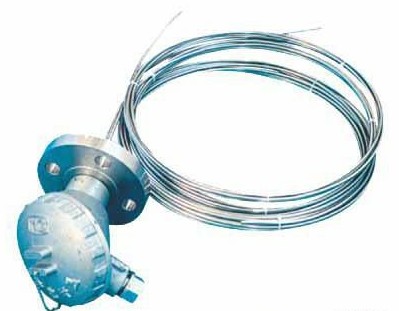

Multi-point thermocouple-Shanghai Jiutian Automation Equipment Co., Ltd.

Detailed introduction

1、application
Applicable to the production site where the temperature gradient is not significant and multiple measurements at multiple locations or locations must be measured simultaneously. Widely used in large fertilizer synthesis towers, storage tanks and other devices.

2、the main technical parameters

Electrical outlet: M27X2, NPT3/4

Thermal response time: ≤ 8S

Even wire diameter: Φ 3

Protection level: IP65

3、model and specifications

Model Graduation number Temperature range °C Points of Temperature Measurement Protective tube material

WRN-230D K 0-1000 2-12 GH3030
0-800 1Ci18Ni9Ni
WRE-230D E 0-600 1Ci18Ni9Ni
WRN-430D K 0-1000 GH3030
0-800 1Ci18Ni9Ni
WRE-430D E 0-600 Ci18Ni9Ni
1)Thermocouple Class I is ordered by agreement;

2) The rest of the protective tube is ordered according to the agreement;

3) External protection pipe users should bring their own

4、the installation of fixed form

Fixed thread

Temperature measurement points M D H h SW d

2—6 M27x2 ￠40 28 5 32 ￠20
7—12 M33x2 ￠48 33 5 36 ￠34

Fixed flange

Temperature measurement points D D1 D2 H do d
2—6 ￠105 ￠75 — 5 32 ￠20
7—12 ￠115 ￠85 — 5 36 ￠34
5、selection instructions

1) Model

2) Graduation number

3) Accuracy level

4) Thermocouple points

5) Mounting form

6) Protection tube material

7) Length or insertion depth
