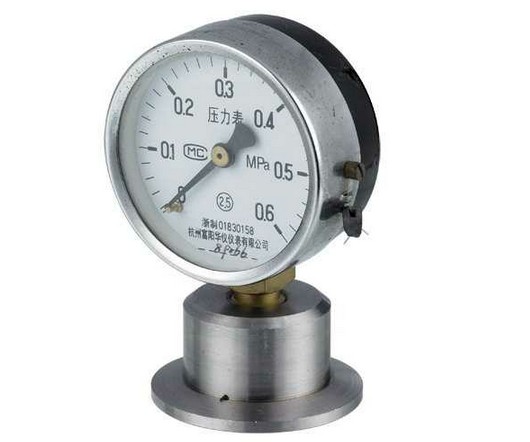

Diaphragm pressure gauge
1、Overview YM diaphragm pressure gauge YMN Diaphragm Seismic Pressure Gauge L threaded connection F flange connection - 100 —pressure gauge diameter is 100 mm 150 —pressure gauge diameter is 150 mm Example: YMNF-100 0 ~ 1MPa pressure gauge diameter of 100 mm, pressure measuring range of 0 ~ 1MPa anti-vibration flange connection diaphragm pressure gauge. 3、technical parameters Product number YML-100 YML-150 YNML-100 YNML-150 YMF-100 YMF-150 YNMF-100 YNMF-150 Nominal diameter Threaded connection Flange connection (Mpa)Measuring range 0 ～ 0.1; 0 ～ 0.16; 0 ～ 0.25; 0 ～ 0.4; 0 ～ 0.6; 0 ～ 1; 0 ～ 1.6; 0 ～ 2.5; 0 ～ 4; 0 ～ 6; Use of environmental conditions Temperature -40 ~ 70 . C; Relative humidity ≤ 85% Shockproof rating V . H . 3 V . H . 4 V . H . 3 V . H . 4 Isolation header Nominal diameter Φ100; Φ150 Categor General Shockproof General Shockproof Accuracy level 1.5; 2.5 Isolation device Flange material 1Cr18Ni9Ti Diaphragm material Stainless steel, Hastelloy, etc Filling working fluid Methyl silicone oil, glycerin, etc. 4、the size Model D H h 0～0.16Mpa 0.25～6Mpa D' d k n-d D' d k n-d YML-100 YNML-150 Φ100 138 24 Φ92 Φ92 YML-100 YNML-150 Φ150 162 24 Φ92 Φ92 YMF-100 YNMF-150 Φ100 117 20 Φ140 Φ76 Φ100 4-Φ18 Φ140 Φ76 Φ100 4-Φ18 YMF-100 YNMF-150 Φ150 141 20 Φ140 Φ76 Φ100 4-Φ18 Φ140 Φ76 Φ100 4-Φ18
|
|
